Modular Water-Cooled Chillers
Modular water-cooled chillers, the SWE-series, are a redundant configuration of components that dissipates heat from a process into water. Water-cooled modular chillers, the SWE-Series made by Whaley Products, Inc. are the choice of industry leaders. Water-cooled chillers are efficient, quiet, long-lived, and are commonly partnered with cooling towers. There are many different equipment selections that our sales engineering team can choose from to make sure your heat removal needs are met – contact our sales team for a personalized review of your cooling needs.
Modular Water-Cooled Chillers

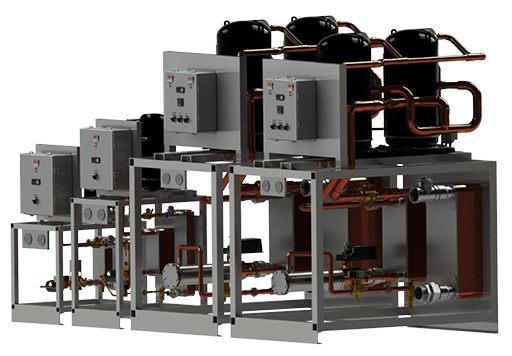

Whaley Products, Inc. SWE-Series modular water-cooled chillers use water cooled condensers, either plate type or barrel type, to convert the high pressure gaseous refrigerant back to a high pressure liquid. The water cooled condensers are typically connected with a cooling tower and are usually preferred for medium and large installations where there is sufficient water. They are also preferred in cases that demand constant performance of the system, independent of the ambient temperature because the capacity is not affected by ambient temperature fluctuations. If you are looking for a system with everything in one package, our SW-series is for you.
Available Models
Use this chart to browse our modular water-cooled chiller models.
Unit capacities have been illustrated at various hypothetical site conditions.
* Performance Illustrated at Hypothetical Conditions of 85F Condenser Water Inlet Temp, 50% Propylene Glycol, Up to 2000 Feet Elevation, 60Hz Power.
** Performance Illustrated at Standard Site Conditions of 85F Condenser Water Inlet Temp, 0% Glycol, Up to 2000 Feet Elevation, 60Hz Power.
*** Performance Illustrated at Hypothetical Conditions of 85F Condenser Water Inlet Temp, 0% Propylene Glycol, Up to 2000 Feet Elevation, 60Hz Power.
| Base Model | Nominal Capacity (tons) | Nominal Capacity (kW) | *Capacity (BTU/hr) Illustrated @ 25F/-3.9C | **Capacity (BTU/hr) Illustrated @ 50F/10C | ***Capacity (BTU/hr) Illustrated @ 65F/18.3C | Refrigeration Circuits | Process Pump (HP) | Tank (gal) | Inlet/Outlet (in)FNPT |
|---|---|---|---|---|---|---|---|---|---|
| SWE1 | 1.5 | 5.26 | 5,904 | 12,000 | 14,952 | 1 | 1 | 30 | 1.0 |
| SWE1.5 | 2.0 | 7.02 | 8,856 | 18,000 | 22,428 | 1 | 1 | 30 | 1.0 |
| SWE2 | 3.0 | 10.53 | 11,808 | 24,000 | 29,904 | 1 | 1 | 30 | 1.0 |
| SWE3 | 4.0 | 14.04 | 17,712 | 36,000 | 44,856 | 1 | 1 | 30 | 1.0 |
| SWE4 | 5.0 | 17.55 | 23,616 | 48,000 | 59,808 | 1 | 1 | 30 | 1.0 |
| SWE5 | 6.0 | 21.06 | 29,520 | 60,000 | 74,760 | 1 | 1 | 30 | 1.0 |
| SWE7.5 | 7.5 | 26.33 | 44,280 | 90,000 | 112,140 | 1 | 2 | 100 | 1.5 |
| SWE10 | 10 | 35.10 | 59,040 | 120,000 | 149,520 | 1 | 2 | 100 | 1.5 |
| SWE10DT | 10 | 35.10 | 59,040 | 120,000 | 149,520 | 2 | 2 | 100 | 1.5 |
| SWE12.5DT | 12.5 | 43.88 | 73,800 | 150,000 | 186,900 | 2 | 2 | 100 | 2.0 |
| SWE15DT | 15 | 52.65 | 88,560 | 180,000 | 224,280 | 2 | 3 | 100 | 2.0 |
| SWE20DT | 20 | 70.20 | 118,080 | 240,000 | 299,040 | 2 | 3 | 150 | 2.0 |
| SWE25DT | 25 | 87.75 | 147,600 | 300,000 | 373,800 | 2 | 3 | 150 | 2.0 |
| SWE30DT | 30 | 105.30 | 177,120 | 360,000 | 448,560 | 2 | 5 | 150 | 3.0 |
| SWE40DT | 40 | 140.40 | 236,160 | 480,000 | 598,080 | 2 | 5 | 200 | 3.0 |
| SWE50DT | 50 | 175.50 | 295,200 | 600,000 | 747,600 | 2 | 5 | 200 | 3.0 |
| SWE60DT | 60 | 210.60 | 354,240 | 720,000 | 897,120 | 2 | 7.5 | 300 | 3.0 |
| SWE70DT | 70 | 246.10 | 413,280 | 840,000 | 1,046,64 | 2 | 10 | 300 | 3.0 |
| SWE80DT | 80 | 281.30 | 472,320 | 960,000 | 1,196,160 | 2 | 10 | 300 | 3.0 |
Contact a Whaley Sales Engineer today for more information.
Standard Features
End Suction Centrifugal Pumps
Insulated Polypropylene/Polyethylene Water/Glycol Reservoir
High Quality Liquid Line Refrigeration Components
Refrigerant Line Service Valves (Liquid Line and Suction Line)
Refrigerant Safety Switches
Stainless Steel Copper-brazed Plate Condenser
Head Pressure Control Package
Assembled, plumbed, and wired on industrial epoxy-coated steel frame
End Suction Centrifugal Pumps
Single point power connection
NEMA 4 Control panel
Copeland Scroll compressor(s)
High Efficient R-410A Refrigerant
Digital Readout Compressor Amperage Indicators & Liquid/Suction Pressure Gauges
Insulated Coaxial Tube-in-tube Evaporators (Water Applications)
Options
Contact Us Today!
Have a question? Need a quote? Sales Engineers are standing by to help.
Simply fill out our form, or give us a call at 940-569-4116.
At Whaley Products, Inc. we manufacture quality industrial modular water-cooled chillers for a wide range of processes and applications. A commitment to precision engineering and innovative design have made Whaley Chillers the choice of Industry Leaders.
