70 Ton chiller systems

choose your configuration

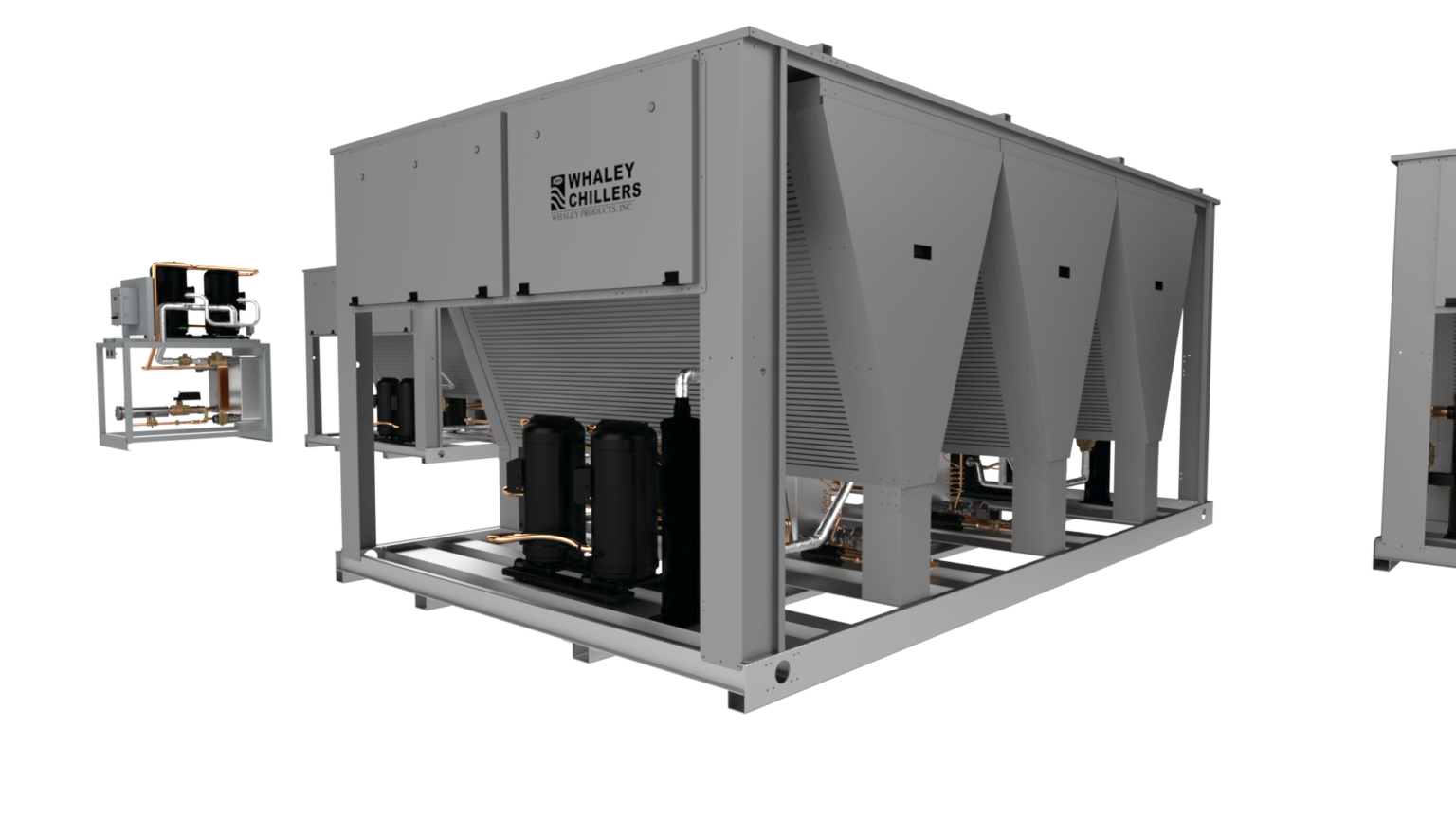

DESCRIPTION

SAR-SERIES

70 Ton

SPLIT AIR COOLED CHILLER
WITH HEAT TRANSFER SKID

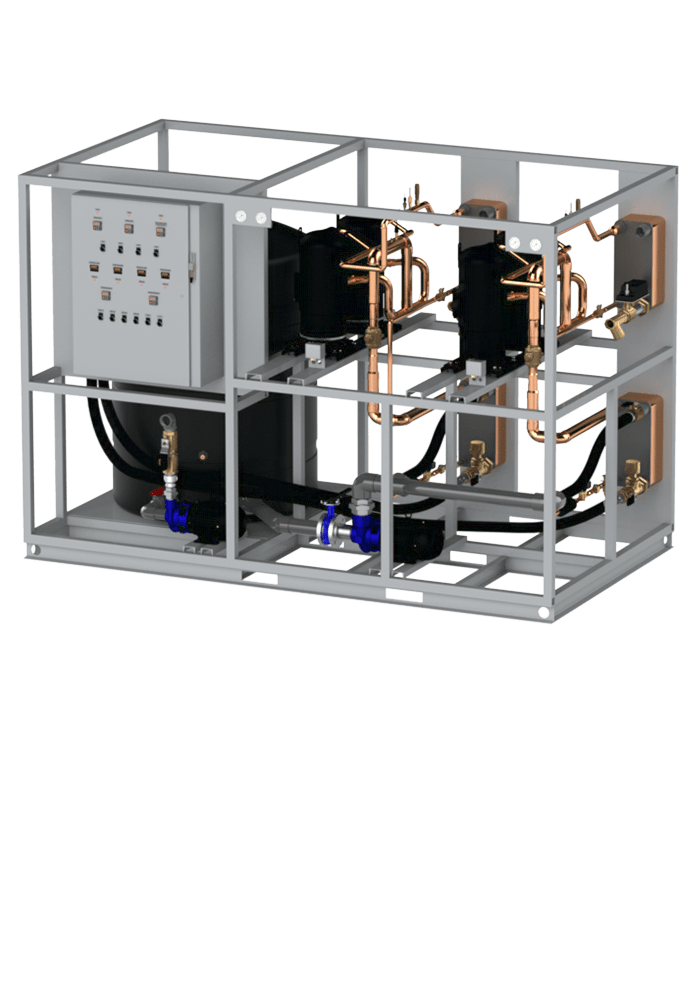

This 70 ton system is made up of 2 main components. The first component is an Air-Cooled Condenser Unit (ACCU), which is typically installed outdoors in order to deflect the heat to the outside atmosphere. The second component is the Heat Transfer Pump Tank Skid (HTPTS), which is typically installed indoors. The HTPTS contains evaporator(s), refrigerant liquid and suction line components, water/glycol reservoir, and pumps. One pump (chiller circulation pump) circulates the chiller's evaporator to keep the chiller system's reservoir tank at the target set point temperature. The other pump (process supply pump) pulls out of the chiller’s internal reservoir, circulates to your downstream application, and returns back to the chiller's internal reservoir.

FOR MORE INFORMATION

DESCRIPTION

This unit is a 70 ton chiller system only. It does not include a tank or pumps, so a tank and pumps will need to be supplied by others to work in conjunction with this unit. If you would like a separate quote for a packaged unit with pumps and tank, let us know.

FOR MORE INFORMATION

SAE-SERIES

70 Ton

MODULAR AIR COOLED CHILLER

DESCRIPTION

This 70 ton complete system is made up of a Modular Air-Cooled Chiller Unit and a Pump Tank System Skid.

FOR MORE INFORMATION

SAE-SERIES

70 Ton

MODULAR AIR COOLED CHILLER
WITH PUMP TANK SKID

DESCRIPTION

SW-SERIES

70 Ton

PACKAGED WATER COOLED CHILLER

Evaporator Side: This 70 ton unit's evaporator side is set up with internal reservoir and pumps. One pump (chiller circulation pump) circulates the chiller's evaporator to keep the chiller's internal tank at the target set point temperature. The other pump (process supply pump) pulls out of the chiller’s internal reservoir, circulates to your downstream application, and returns back to the chiller's internal reservoir.
Condenser Side: A cooling tower loop or other condenser water loop is required to circulate the water-cooled condenser side of this system. No pump or reservoir is provided for the condenser side circulation. Whaley can provide a separate cooling tower and/or pump/strainer/control station to circulate the condenser side of this chiller system if needed.

FOR MORE INFORMATION

DESCRIPTION

SWE-SERIES

70 Ton

MODULAR WATER COOLED CHILLER

Evaporator Side: An evaporator circulation loop is required to circulate the evaporator side of this 70 ton system. No pump or reservoir is provided for the evaporator side circulation. Whaley can provide a separate quote for a packaged water-cooled chiller with integral pumps/reservoir for the evaporator side circulation and process application circulation, if needed.
Condenser Side: A cooling tower loop or other condenser water loop is required to circulate the water-cooled condenser side of this 1.5 ton system. No pump or reservoir is provided for the condenser side circulation. Whaley can provide a separate cooling tower and/or pump/strainer/control station to circulate the condenser side of this chiller system if needed.

FOR MORE INFORMATION

MODULAR WATER COOLED CHILLER

PACKAGED WATER COOLED CHILLER

SPLIT AIR COOLED CHILLER WITH HEAT TRANSFER SKID

MODULAR AIR COOLED CHILLER WITH PUMP TANK SKID

MODULAR AIR COOLED CHILLER

Configurations

Features

Contact

Options

Quote

10-Ton Cooling Towers

70 Ton Chiller Standard and Optional Features

Audible Alarm Packages

Temperature Control Packages

Remote Panel Options

NEMA-4 Rated Control Panels with Upgrade Options

Refrigerant Safety Switches

Whale-soft Tested and Certified

Back Up Pump Upgrade Options - Duplex, Swing, Loose

Low Ambient Packages

Variable Frequency Drive Packages

Hand-Off-Auto Switches for Remote Start Capability

Evaporator Upgrade Options - Insulated Coaxial Tube-in-tube, Plate and Frame, Stainless Steel

Pump Upgrade Options - Style, Material, Seal Type
